C.E. Smith Bunkboard Guide-Ons

C.E. Smith offers bunk board guide-ons for marine trailers in a variety of options. Here's a capsule look at each model with the specs and options:

* Model 27671: Ideal for bunk-style pontoon boat trailer with box, channel, or I-beam frames up to 3 in. wide x 4 1/4 in. tall. Pontoon glides easily past the carpeted bunk boards, guiding the pontoon boat onto the trailer. Height is adjustable and is set during install between 24 in. and 36 in. above trailer frame. Mount with bunks 2-3 in. from pontoons on a trailer frame cross member.

-- Fits frames up to 3 in. wide x 4 1/4 in. tall
-- U-bolt mounting brackets
-- Includes two 24 in. carpeted bunk boards
-- Galvanized steel construction
-- Zinc plated hardware

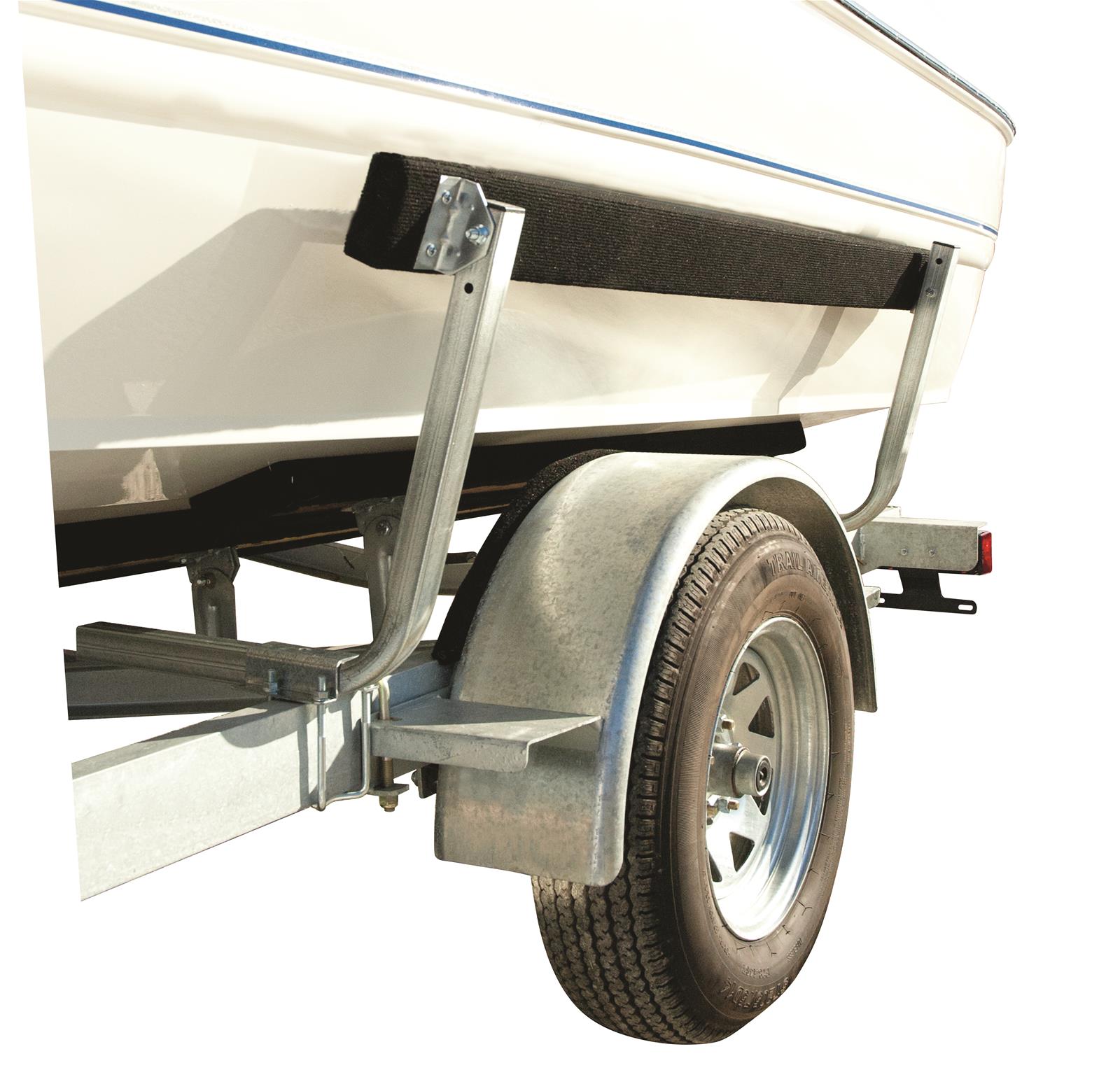

* Model 27600: Carpeted bunk boards provide proper center loading even in wind or side current conditions.

-- 1 1/2 in. square pre-galvanized uprights, angled out at 75 degrees
-- 2 in. x 4 in. x 24 in. boards tilt to hug the hull and are covered with high grade marine carpet
-- Boards are untreated Southern yellow pine
-- Height of 21 in. with adjustment out to 13 in. from frame on each side
-- Can be mounted on top of frame for extra height
-- Complete with mounting hardware to fit frames up to 3 in. wide x 4 1/4 in. high

* Model 27660: Carpeted bunk boards provide proper center loading even in wind or side current conditions. Adjustable boat guides can be fine-tuned to work with your boat and your trailer. The pre-galvanized steel support posts mount horizontally on top of or below your trailer's frame rail. Just slide the posts into the boat guide supports and secure the posts so that the distance between the bunks correctly matches the width of your boat. The bunk boards then tilt to conform to the boat's hull. Guides will help to center your boat during loading and to hold the boat during transport.

-- 1 1/2 in. square pre-galvanized uprights, angled out at 75 degrees
-- 2 in. x 4 in. x 60 in. boards tilt to hug the hull and are covered with high-grade marine carpet
-- Boards are untreated Southern yellow pine
-- Height of 21 in. with adjustment out to 13 in. from frame on each side
-- Can be mounted on top of frame for extra height
-- Complete with mounting hardware to fit frames up to 3 in. wide x 4 1/4 in. high
