In the Box
- Force® Kraken Trolling Motor
- GT56UHD-TR transducer
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Documentation
| General | |
|---|---|
| Color | black |
| For use in | freshwater, brackish water and saltwater |
| Mount style | pivot-style mount |
| Max thrust | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
| Voltage | 24V_36V |
| Electric steering | Yes |
| Built-in heading sensor | Yes |
| Built-in GPS | yes (dual frequency GPS) |
| Warranty | 3-year, limited lifetime on shaft |
| Water rating | IPX7 |
| Mounting location | bow |
| Wireless remote | yes (included) |
| Foot pedal compatible | Yes |
| Battery indicator | Yes |
| Variable speed control | yes (20 steps) |
| Lighted direction indicator | Yes |
| quatix remote control supported | Yes |
| Sonar Features | |
|---|---|
| Frequencies supported |
Traditional: High-wide CHIRP (150-240 kHz) |
| Transmit power | Traditional: 350 W ClearVü/SideVü: 500 W |
| Maximum depth | CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft |
| Depth/speed/temperature | depth and temperature |
| Number of pins | 12-pin (orange connector) |
| LiveScope cable integration | yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
THERE’S A NEW LEGEND TO BEHOLD
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
INDUSTRY’S MOST POWERFUL TROLLING MOTOR; 100 LBS OF THRUST1
WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS
STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS

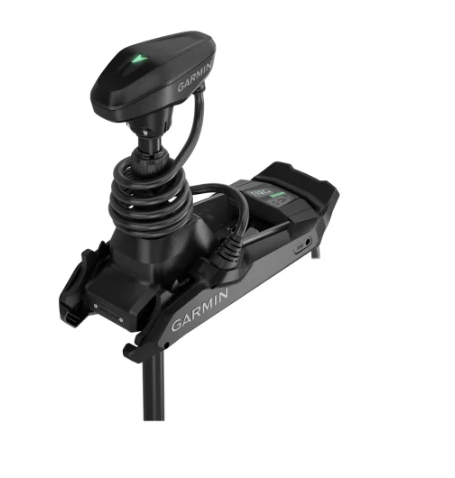

PIVOT-STYLE MOUNT FOR EASY INSTALLATION

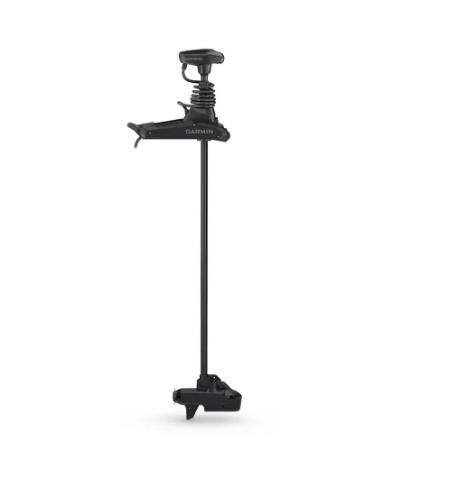

AVAILABLE IN 48", 63” AND 75” SHAFT LENGTHS
SEAMLESS CABLE INTEGRATION WITH LIVESCOPE™ SONAR
HIGH POWERED
With 100 lbs of thrust1, Force Kraken is the most powerful trolling motor on the market.
POWER THAT LASTS
Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.
WHISPER QUIET
Don’t spook the fish; the motor is extremely quiet above and below the water.
PERFECT FOR DEEP V HULLS
Get easy installation where bow space is limited, thanks to the pivot-style mount. The 48", 63” and 75” shaft lengths accommodate many different boat sizes and deck configurations.
TOTAL CONTROL
STAY PUT
The anchor lock provides our most precise boat positioning technology to help keep the boat in one place.
FLOATING REMOTE
Use the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology.
SMARTWATCH INTEGRATION
Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
WIRELESS INTEGRATION
Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.
SONAR
ULTRA HIGH-DEFINITION SONAR PICTURE
The brushless motor allows for clear sonar returns with extremely low levels of unwanted noise.
LIVESCOPE CABLE MANAGEMENT
Keep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).
