In the Box

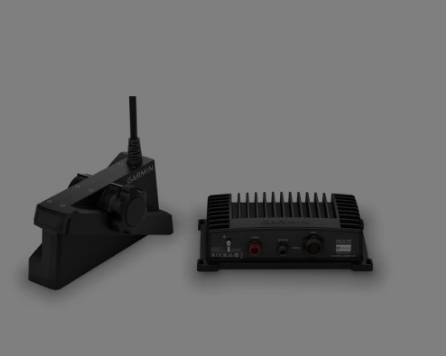

- LiveScope GLS 10 sonar black box
- LiveScope XR LVS62 transducer

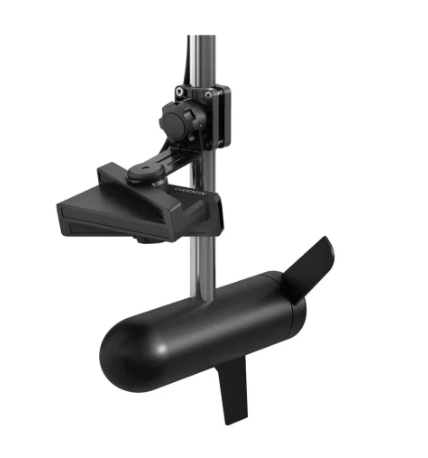

- Perspective mount (LiveScope XR LVS62 transducer only)

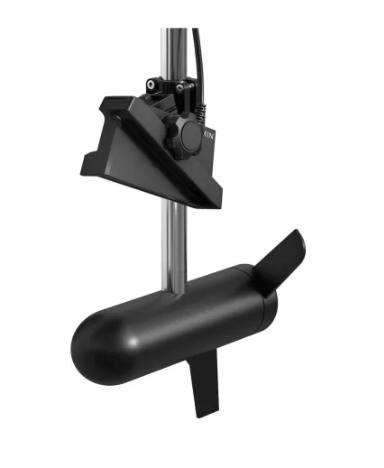

- Trolling motor barrel mount

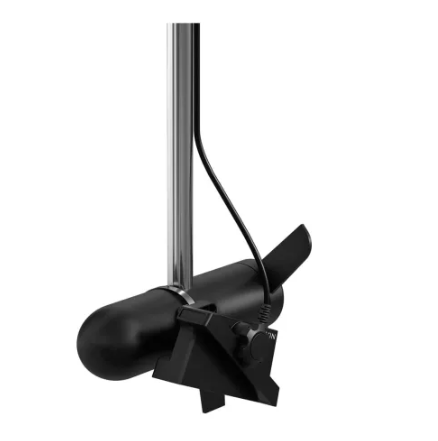

- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
| General | |
|---|---|
| Transducer beamwidth | 20° x 135° |
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension |
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm) |
| Weight |
GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| Water rating | IPX7 |
| Temperature range |
GLS 10 Black Box: Operating: -15 C to 70 C LVS62 Transducer: Operating: 0 C to 40 C |
| Electrical Features | |
|---|---|
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 7" (0.18 m) |
| Sonar Features | |
|---|---|
| Frequency | 265 - 550 kHz |
| Transmit power | 500 W |
| Maximum depth | Freshwater: Down and Forward: 500’ (152.0 m) Saltwater: Down and Forward: 350’ (106.0 m) |
| Sonar Type | Live |
| Target Separation @100' | 22" |
| Perspective Mode Mount Included | Yes |
THE BEST OF THE BEST JUST HIT THE OPEN WATER
You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.
Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.
Find fish circling your boat with clear views close around your hull.
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.
THE LONG VIEW
The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.
A CLOSE VIEW
The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
IMAGE STABILIZATION
A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOR PALETTES
Choose from seven vivid color options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.
FORWARD MODE
Now scout even farther ahead of your boat to see what’s happening in real time.
DOWN MODE
Explore live views of the activity deeper beneath your boat.
PERSPECTIVE MODE
See under the water with a view from your perspective above the water.
