In the Box
- Alpha® XL dog tracking GPS navigator
- Rugged suction cup with powered VHF mount
- Socket arm and 1" ball mount

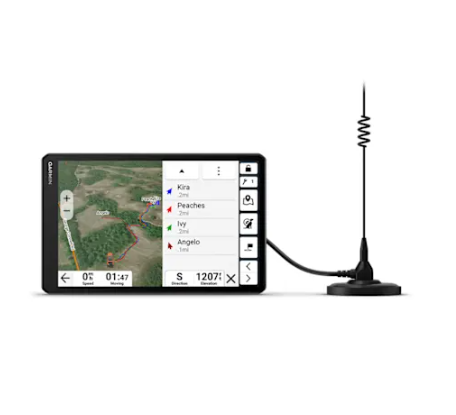

- 16” (40.6 cm) magnetic mount antenna
- Vehicle power cable
- Charging/data cable
- Documentation
| General | |
|---|---|
| Dimension | 9.65" W x 6.06" H x 0.83" D (24.5 x 15.4 x 2.1 cm) |
| Weight |
Total: 28.5 oz (806 g) Head Unit: 19.5 oz (554 g) |
| Display Type | 10.1" wide view IPS, color TFT, with on-lens capacitive touch panel |
| Display Size | 8.5" W x 5.3" H (21.6 x 13.5 cm); 10.1" (25.7 cm) diagonal |
| Display resolution | 1280 x 800 pixels |
| Dual-orientation display | Yes |
| Magnetic Mount | Yes |
| 1" ball adapter with AMPS plate | Yes |
| Battery type | rechargeable lithium-ion |
| Battery life |
up to 2 hours |
| Maps & Memory | |
|---|---|
| Preloaded street maps | Yes |
| High Definition 3D terrain | yes (Outdoor Maps+ Subscription) |
| Data cards | microSD™ card (not included) |
| 3D Terrain | yes (Outdoor Maps+ Subscription) |
| Internal storage | 64 GB |
| Ability to add maps | yes (Outdoor Maps+ Subscription) |
| External memory storage | microSD™ card (not included) |
| Includes map updates | yes (Outdoor Maps+ Subscription) |
| Downloadable Satellite Imagery | yes (Outdoor Maps+ Subscription) |
| TOPO map support | yes (Outdoor Maps+ Subscription) |
| Downloadable USGS Quad Sheets | yes (Outdoor Maps+ Subscription) |
TRACK YOUR PACK FROM YOUR TRUCK
For hunters who want to track, monitor and retrieve their dogs from the field, this rugged dog tracking GPS navigator can handle off-road terrain while following up to 20 dogs1 on its big, easy-to-read display.
CRISP HIGH-RESOLUTION 10-INCH TOUCHSCREEN
PAIRS DIRECTLY TO YOUR COMPATIBLE GARMIN DOG COLLARS AND HANDHELDS
TRACK UP TO 20 DOGS, SHOWING DISTANCE, DIRECTION AND STATUS FOR EACH
NAVIGATE YOUR HUNT WITH GARMIN MAPPING FOR ON- OR OFF-ROAD
DELIVER COMMANDS TO PAIRED DOG COLLARS VIA THE TOUCHSCREEN
CHANNEL VIEW FEATURE HELPS AVOID FREQUENCY CONGESTION
BIG, EASY-TO-READ DISPLAY
An extra-large 10-inch capacitive touchscreen provides a crisp high-resolution display for easy readability while driving.
TRACK YOUR PACK
Monitor up to 20 dogs with your compatible dog collars — from up to 9 miles away — on the color touchscreen map display. Unit is backward compatible with select Garmin collar devices, so you can track with existing equipment.
COMMAND CENTRAL
The unit’s large touchscreen lets you deliver training commands — from 18 levels of stim, tone and vibration— to your paired collars, enabling quick adjustments for individual dogs.

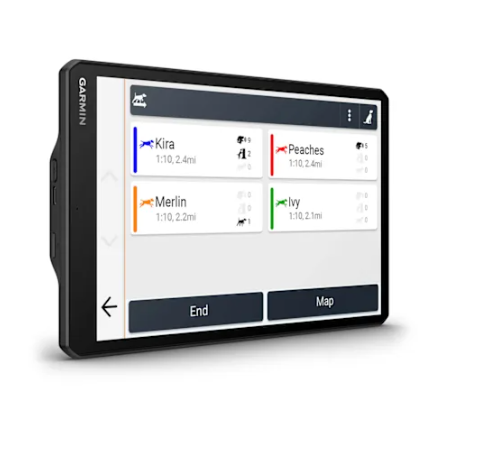

HUNT METRICS
See each dog’s daily hunting patterns, distance, speed and time afield, so you can monitor performance1.
CHANNEL VIEW FEATURE
Monitor the concentration of collars in the area, and easily select less congested channels to avoid interference.
SATELLITE IMAGERY
Download satellite imagery to your device via Wi-Fi® technology, and see the terrain features from above to help you navigate or find suitable habitat for your quarry.
HUNTING/TRACKING FEATURES
IN-VEHICLE TRACKING

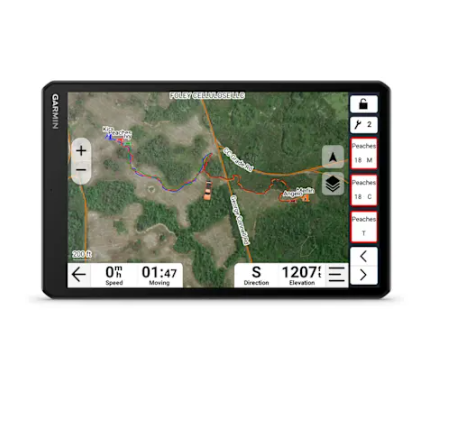

View dog positions overlaid on topo contours or satellite image views.
WIRELESS CONNECTION
Tracker works on or off the in-vehicle dock — connecting wirelessly within 10’ for up to 2 hours.
18 LEVELS OF TRAINING
Customize commands with momentary and continuous stim plus different levels of tone or vibration.
DOG LIST/GROUP MANAGEMENT
Store up to 250 dogs in your list, and manage active groups.

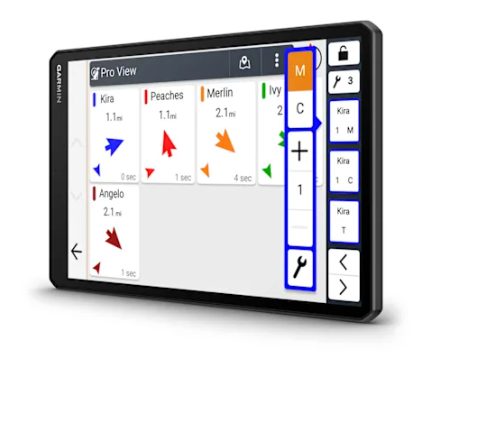

PRO VIEW COMPASS
Display shows which direction and how far away dogs are — and when a dog is “treed” or “on point.”
COLLAR MONITORING
See battery level, communication state and more for paired collars.
LOCATION AND GEOFENCING ALERTS
Know where your dogs are, and get an alert if they move outside a designated area1.
DEVICE INTEGRATION
Enjoy wireless connectivity with a full range of compatible Garmin handhelds and dog collar devices.
BACKWARD COMPATIBLE
Easily pair the device to select T and TT™ series collars.
NAVIGATION FEATURES
MULTI-GNSS SUPPORT
Access multiple satellite systems to track your pack in more challenging environments than GPS alone.
MAPS FOR ON- AND OFF-ROAD
Get topo and street maps of North America, U.S. Forest Service roads and trails, and more.
TOPOACTIVE MAPS
See terrain contours, elevations, summits, parks, coastlines, rivers, lakes and more.
ABC SENSORS
Outdoor sensors include altimeter, barometer and 3-axis electronic compass for rugged-terrain guidance.
OUTDOOR MAPS+
Subscribe to Outdoor Maps+ to view public land information, enhanced topo maps, landowner names and more2.
