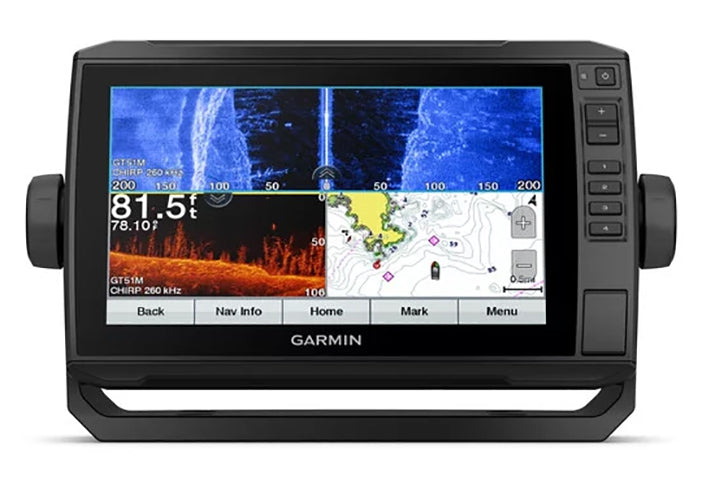

Bright, sunlight-readable 9” combo offers the convenience of a keyed-assist touchscreen. It comes with a GT51 transducer that encompasses Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. Preloaded BlueChart g3 charts with integrated Navionics data cover the coastal U.S. Plus, it has Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. It also has built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you. Transom and trolling motor mounts included.
- Bright, sunlight-readable 9” keyed-assist touchscreen combo
- Includes GT51 transducer for Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars; compatible with Panoptix™ all-seeing sonar (sold separately)
- Preloaded BlueChart® g3 charts with integrated Navionics® data for the coastal U.S.
- Built-in Garmin Quickdraw™ Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Use built-in Wi-Fi® to pair with the free ActiveCaptain® app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ Community data and more
- Share sonar, waypoints and routes with other ECHOMAP Plus 7” and 9” units as well as ECHOMAP Ultra 10” and 12” units
- Physical Dimensions 11.4'' x 6.5'' x 2.4''
- Display Resolution: 400 x 880
- Display type WVGA color
- Weight: 2.3 lbs
- Water Rating IPX7
- Accepts Data Cards: 1microSD card, Max 32gb
- Waypoints: 5000
- Routes: 100
- Track Log: 50,000 points; 50 saved tracks
- Garmin Sonar Compatible
- Supports AIS (Tracks Target Ships Position)
- Supports DSC (Displays Position Data From DSC-Capable VHF Radio
- Supports Fusion-Link Compatible Radios
- Dual-frequency (50/200 kHz) sonar capable
- Dual-beam (77/200 kHz) sonar capable
- CHIRP Sonar Technology: Built-In
- ClearVü: Built-In w/CHIRP
- SideVü: Yes w/CHIRP
In The Box:
ECHOMAP Plus 94sv Fishfinder w/ BlueChart g3 for U.S.
GT51M-TM transducer
Power/data cable
Tilt mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
