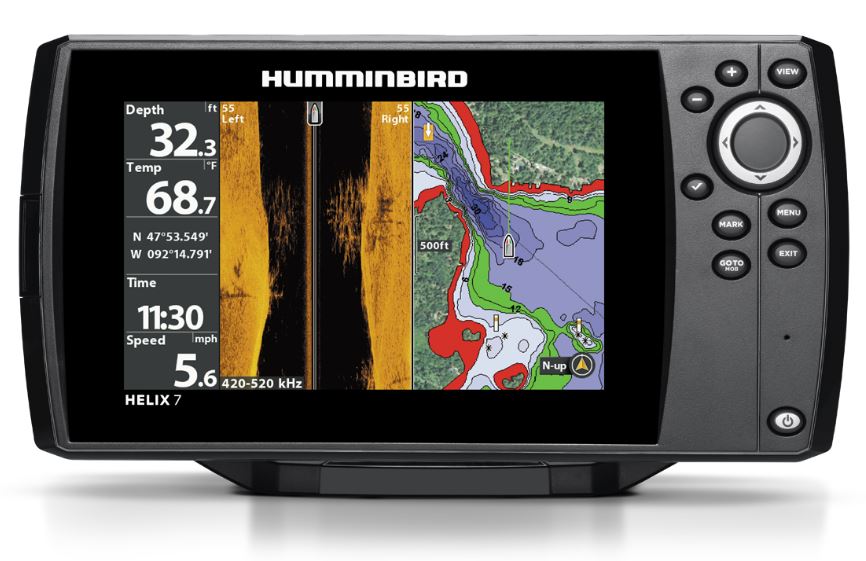

Humminbird Helix 7 Chirp DI G2 Fishfinder & GPS Chartplotter

Humminbird Helix 7 Chirp DI G2 Fishfinder & GPS Chartplotter

Sale price
$499.99

Lowest Price Guarantee

This item is temporary out of stock



Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

ggg

Lowest Price Guarantee

Discover fish and structure, then track their every move with the HELIX 7™ CHIRP DI GPS G2. See fish and vertical lure presentations by viewing CHIRP Down Imaging® and SwitchFire® Sonar side-by-side on the wide, 16-bit display. The reliable, internal GPS offers 2500 waypoints and 50 routes, so you can return to your most productive spots time and time again.









WARNING: This product can expose you to chemicals 1,3-Butadiene which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


  • Display Size - Diagonal: 7"
  • Display Pixel Matrix: 800H x 480V
  • Display Type: Color TFT
  • Display Colors Grayscale: 16-bit
  • Sonar Standard: CHIRP/Down Imaging/DualBeam PLUS
  • Standard Sonar Coverage: 16°, 28°, 45° & 75° @ -10db
  • Standard Sonar Frequency: 200/455/455/800 kHz
  • Sonar Optional: 50/83 kHz
  • Target Separation: 2.5"
  • Power Output RMS: 500 Watts*
  • Power Output Peak to Peak: 4000 Watts*
  • Depth Capability: 600 ft
  • Temperature: Built In Transducer
  • Speed: GPS Speed Included
  • Backlight: LED
  • Unit Size - Gimbal Mount: 10.54"W x 5.44"H x 1.13"D
  • Mount A Type: Gimbal Mount
  • Unit Size - Indash Mount: 10.54"W x 5.80"H x 3.68"D
  • Mount B Unit Size2: Optional In-Dash
  • Mounting Options: Gimbal or Optional In-Dash
  • Transducer Standard: XNT 9 DI T
  • CHIRP Frequencies (Out of Box Transducer)
    • 455 kHz: 420-520 kHz
    • 800 kHz: 790-850 kHz
    • Maximum Depth: 600 feet


  • Transducer Mounting: Transom
  • Power Input: 10.8-20 VDC
  • Power Draw: 850 mA
  • GPS Receiver
  • GPS Tracking
  • GPS Chartplotting
  • Waypoints, Routes, Tracks/Points: 2,500, 50, 50/20,000
  • Humminbird Mapping: Optional
  • Navionics+: Optional
  • Navionics Platinum+: Optional
  • Platinum Capable: Optional
  • Precision GPS
  • PC Connect: Optional
  • SwitchFire Sonar
  • Sonar Recording
  • Humminbird PC
  • Upgradable Internal Software
  • Split Screen Zoom
  • Split Screen Bottom Lock
  • 3D Chart View
  • Large Digits View
  • Wide/Narrow Cone Split Screen
  • Custom View Selections
  • Custom Digital Readout
  • Temperature Alarm
  • Freeze Frame
  • Instant Image Update
  • Mark Structure on Sonar
  • Selective Fish ID+
  • Real Time Sonar
  • Triplog: Included
  • X-Press Menu System
  • Card Reader Available: Yes
  • # Card Slots: 1
