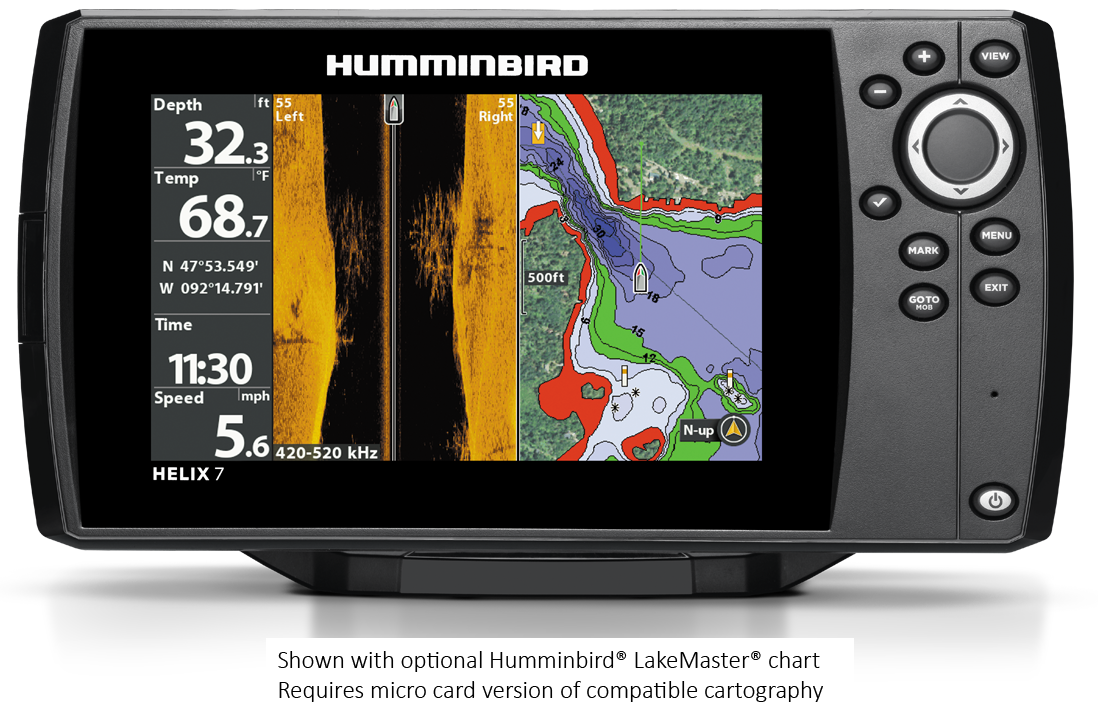

Sometimes, you need every possible weapon at your disposal. Days like these call for the HELIX™ 7 CHIRP SI GPS G2 and its full arsenal of amazing technologies, including Side Imaging®, Down Imaging® and SwitchFire® Sonar. The seven-inch wide screen is the perfect canvas for your choice of split-screen views. The single card slot accommodates Humminbird® LakeMaster®, AutoChart™ and AutoChart™ Pro, as well as Navionics®+. Leading-edge technology has never been closer in reach.

WARNING: This product can expose you to chemicals 1,3-Butadiene which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Display Size - Diagonal: 7" High Definition

• Display Pixel Matrix:800H X 480V

• Display Type:Color TFT

• Display Colors Grayscale:16-bit

• Sonar Standard:CHIRP Side Imaging/CHIRP Down Imaging/CHIRP Digital Sonar/DualBeam PLUS

• Standard Sonar Coverage:20°, 60° & (2) 86° @ -10db (Total of 180°)

• Standard Sonar Frequency:83/200/455 kHz

• Sonar Optional:50kHz, 50/Low Airmar CHIRP

• Target Separation:2.5"

• Power Output RMS:500 Watts*

• Power Output Peak to Peak:4000 Watts*

• Depth Capability:1500 ft

• Temperature:Built In Transducer

• Speed:GPS Speed Included

• Backlight:LED

• Unit Size - Gimbal Mount:10.54"W x 5.44"H x 1.13"D

• Mount A Type:Gimbal Mount

• Unit Size - Indash Mount:10.54"W x 5.80"H x 3.68"D

• Mount B Unit Size2:Optional In-Dash

• Mounting Options:Gimbal or Optional In-Dash

• Transducer Standard:XNT 9 SI 180 T

• Transducer Mounting:Transom

• Power Input:10.8-20 VDC

• Power Draw:850 mA

• GPS Receiver:Included

• GPS Tracking:Included

• GPS Chartplotting:Included

• Waypoints, Routes, Tracks/Points:2,500, 50, 50/20,000

• Humminbird Mapping:Optional

• Navionics+:Optional

• Navionics Platinum+:Optional

• Platinum Capable:Optional

• C-Map 4D:Not Supported

• PC Connect:Optional

• SwitchFire Sonar

• Screen Snap Shot

• Sonar Recording

• Humminbird PC

• Upgradable Internal Software

• Autochart Live

• Smart Strike

• Split Screen Zoom

• Split Screen Bottom Lock

• 3D Chart View

• Large Digits View

• Wide/Narrow Cone Split Screen

• Custom View Selections

• Custom Digital Readout

• Temperature Alarm

• Freeze Frame

• Instant Image Update

• Mark Structure on Sonar

• Selective Fish ID+

• Real Time Sonar

• Triplog

• X-Press Menu System

• Card Reader

• # Card Slots:1

CHIRP Frequencies (Out of Box Transducer)

• 455 kHz: 420-520 kHz

• 800 kHz: 790-850 kHz

• Maximum Depth: 600 feet

CHIRP Frequencies (Optional Transducer)

• Low: 28-75 kHz

• Med: 75-155 kHz

• High: 130-250 kHz

• 83/200: 75-155/130-250

• 50/200: 28-75/130-250

• Maximum Depth: 2500 feet
