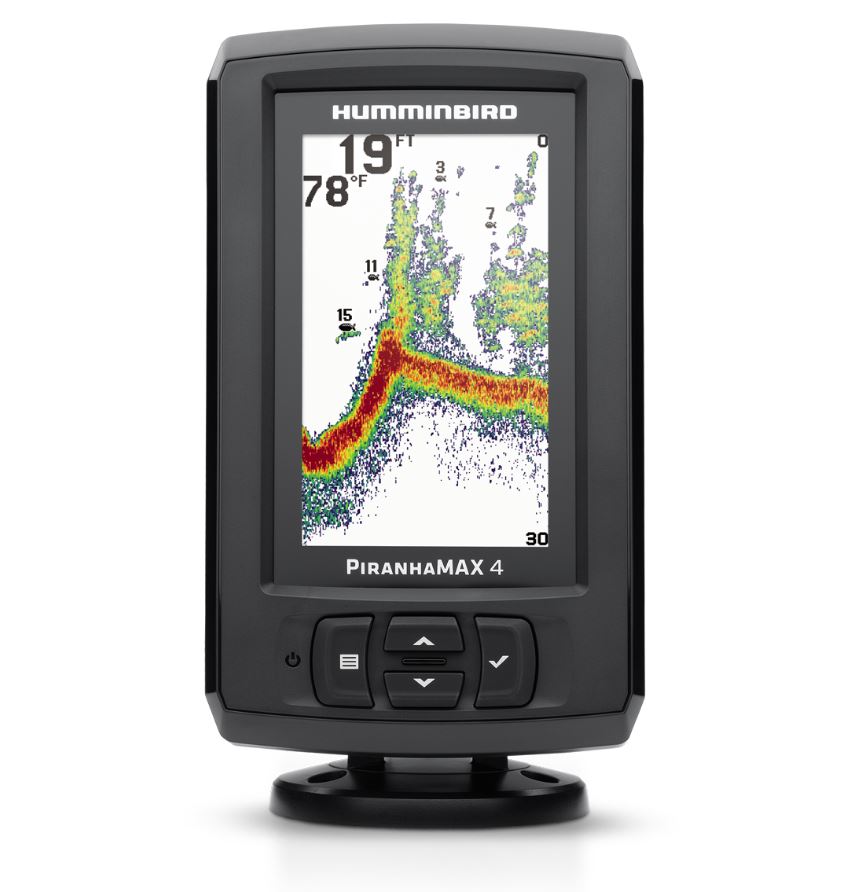

Featuring a 256 color 480V x 272H 4.3 inch display, combined with DualBeam Frequency Sonar, the PiranhaMAX 4 offers you the incredible features and high function, as the sister Helix Series. Not only do you get incredible depth capabilities, but you won't be forking over that big bill to get it.
 WARNING: This product can expose you to chemicals 1,3-Butadiene which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
- Display Size: 4.3"
- Display Pixel Matrix: 480H x 272V
- Display Type: Color TFT
- Display Colors Grayscale: 256 Colors
- Sonar Standard: DualBeam
- Standard Sonar Coverage: 28° & 16° @ -10db
- Standard Sonar Frequency: 200/455 kHz
- Target Separation: 25"
- Power Output RMS: 300 Watts
- Power Output Peak to Peak: 2400 Watts
- Depth Capability: 600 ft 200 kHz, 320 ft 455 kHz
- Temperature: Built-In Transducer
- Speed: Not Supported
- Backlight
- Unit Size - Gimbal Mount: 3914"W x 7335"H x 3621"D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: In Dash
- Mount B Unit Size2: 3914"W x 6770"H x 2600"D
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 28 T
- Transducer Mounting: Inside Hull or Transom
- Power Input: 108-20 VDC
- Power Draw: 180mA
