Featuring support for the best suite of fish finding tools from Active Imaging and LiveSight real-time sonar to StructureScan 3D with Active Imaging and Genesis Live on-screen mapping, HDS LIVE 9 is the perfect solution for anglers who want the best sonar and navigation technology in a mid-sized display.

• Active Imaging 3-in-1 (CHIRP/Side/Down) sonar ready

• StructureScan 3D with Active Imaging enhancements - Coming Fall 2018

• LiveSight real-time sonar compatible - Coming Spring 2019

• Smartphone notifications

• High-performance dual-core

• C-MAP Genesis Live onscreen mapping

• FishReveal Smart Target View

• High-resolution SolarMAX HD multi-touch screen

• Preloaded high-detail C-MAP US Enhanced charts with 1-foot contours on 4,000 lakes

• C-MAP Easy Routing, Navionics Autorouting capability

• Dual-Channel CHIRP - dual sonar-range coverage from the same transducer

• Live Network Sonar

• SiriusXM Marine Weather and Audio compatible

• Wireless and Bluetooth connectivity

• Heat Map Chart Overlay

• Enhanced Surface Clarity

• Quick Access Control Bar

• Touchscreen control of MotorGuide Xi5 9Trolling Motor , Outboard Pilot and Power Pole anchors

• Radar and SonicHub2 audio server connectivity

• NMEA 2000 engine support

• Optional mapping upgrades include C-MAP, Navionics and more

• SD Card Storage: 2 micro SD cards up to 32GB

• Internal Storage: 8 GB

• Ethernet Ports: 2x 100 Mbit, 6 max MFD's on a network

• Integrated Bluetooth 4.0 with support for Bluetooth Classic

• GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS

• 1280x720 9" Touchscreen Display

• Dimensions: 6.56"H x 11.02"W x 3.05"D

• Screen Brightness: 1200 nits

• 16 GPS receiver channels

• NMEA 2000 Connectivity: 1x Micro-C

• 3000 Waypoints | 100 Routes | 100 Trails with up to 10,000 points per trail

• Charts Supported:

  • C-MAP (MAX N, MAX N+)

  • C-MAP Genesis

  • C-MAP Precision Contour HD (AMER ONLY)



  • Navionics (Gold, NAV+ Platinum+)


  • Insight (Pro and HD)


  • Lowrance Regional Mapping Partners


• Cartography Included:

  • C-MAP US Enhanced Basemap (AMER models)

  • C-MAP World Background (ROW models)

  • Navionics basemap (AMER and ROW models)



• Sonar Compatibility:

  • Integrated:



  • CHIRP Broadband Active Imaging

  • DownScan Active Imaging

  • SideScan



  • Compatible With:


  • SonarHub

  • Structure Scan

  • Structure Scan 3D


• Radar Compatibility:

  • 4G (Broadband)

  • 3G (Broadband)

  • Halo24 (Pulse Compression Dome Radar

  • Halo 3'/4'/6' (Open Array Pulse Compression Radar)


• Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module

• Autopilot:

  • Outboard Pilot

  • MotorGuide Xi5/Xi3 Trolling Motor**(Requires Motorguide PinPoint Gateway)



• Waterproof Rating: IPX7 (With door closed)

• Steering Modes:


• Course

• Heading

• Waypoint

• Power Steer


• Manouevers Turn Patterns

  • Course

  • Heading

  • Waypoint

  • Power Steer

  • U-Turn

  • C-Turn

  • Spiral

  • Zigzag



  • Square


  • Lazy-S




• Video Output: No| Input: Composite video RCA - single channel via optional adaptor

• Warranty: 2 Year + 3 additional years of upgrade options - totaling 5 years

In The Box:

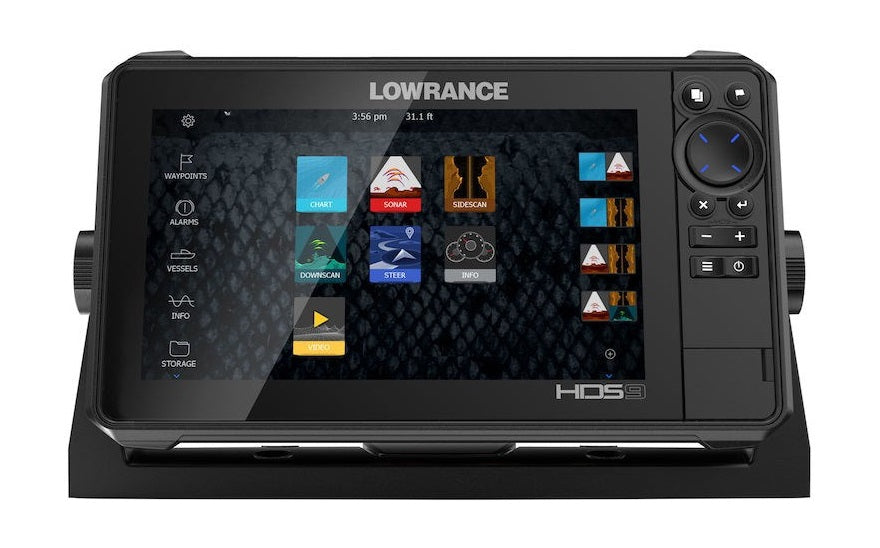

• Lowrance HDS-9 Live Fishfinder/Chartplotter
• PC-30-RS422 Power Cable for HDS Series
