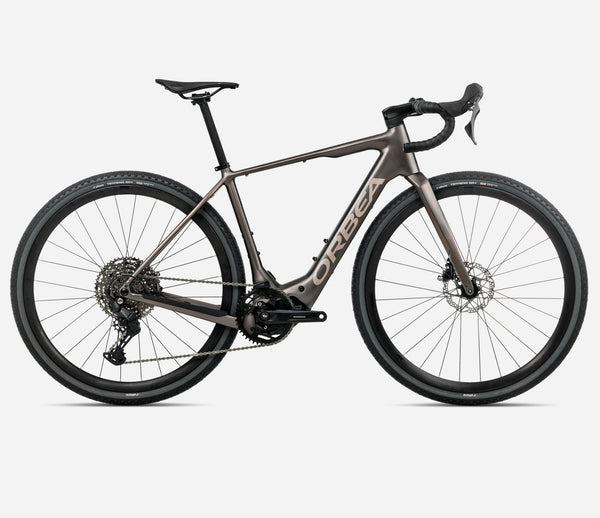

Denna is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

BUILD KIT:

• Frame: Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing
• Fork: Orbea Denna OMR ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru Axle 12x100mm, thread M12xP1
• Steerer tube: FSA 1.5" Integrated Aluminium Cup
• Battery: Orbea Internal 420Wh
• Range Extender: N/A
• Motor: Shimano EP600
• Charger: Orbea 2nd Generation eBike Smart Charger 42V/2–4A
• Remote: EN600-L
• Chainring: Alloy EP8 42t
• Crank: Shimano Steps EM600
• Shifters: Shimano U6030
• Cassette: Shimano CS-LG400 11-50t 11-Speed
• Rear derailleur: Shimano Cues U6000 GS Shadow
• Chain: Shimano LG500
• Chainguide: Orbea eBike chainguide
• Handlebar: OC Gravel GR31, Reach 70, Drop 110
• Stem: OC Road Performance RP23, -5º
• Brakes: Shimano RS405 Hydraulic Disc
• Brakes Configuration: N/A
• Wheels: Alloy, Tubeless, 700c, 21c
• Tyres: Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
• Front Wheel Axle: Orbea Thru Axle 12x100mm M12xP1 Hollow
• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
• Seatpost: SP 0.2 Carbon, 27.2mm, Setback 0
• Saddle: Selle San Marco Shortfit 2.0 Start Up Off Road
• Mudguard: N/A
• Handlebar Tape: Orbea Anti-Slippery/Shock Proof
• Storage: OC Frame Bag for Denna
