The lightweight WILLIAM large-capacity asymmetric carabiner is made of aluminum. It has a pear shape that is practical for easily connecting multiple items. Its fluid interior design and Keylock system facilitate handling. The WILLIAM carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system.
Detailed description
Description
- Pear shape offers a large capacity and wide opening:
- facilitates connection of multiple items
- allows Munter hitch use for escape
- Aluminum carabiner whose light weight reduces the weight of equipment the worker at height needs to carry
- Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
- H cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
- Available in three different locking systems:

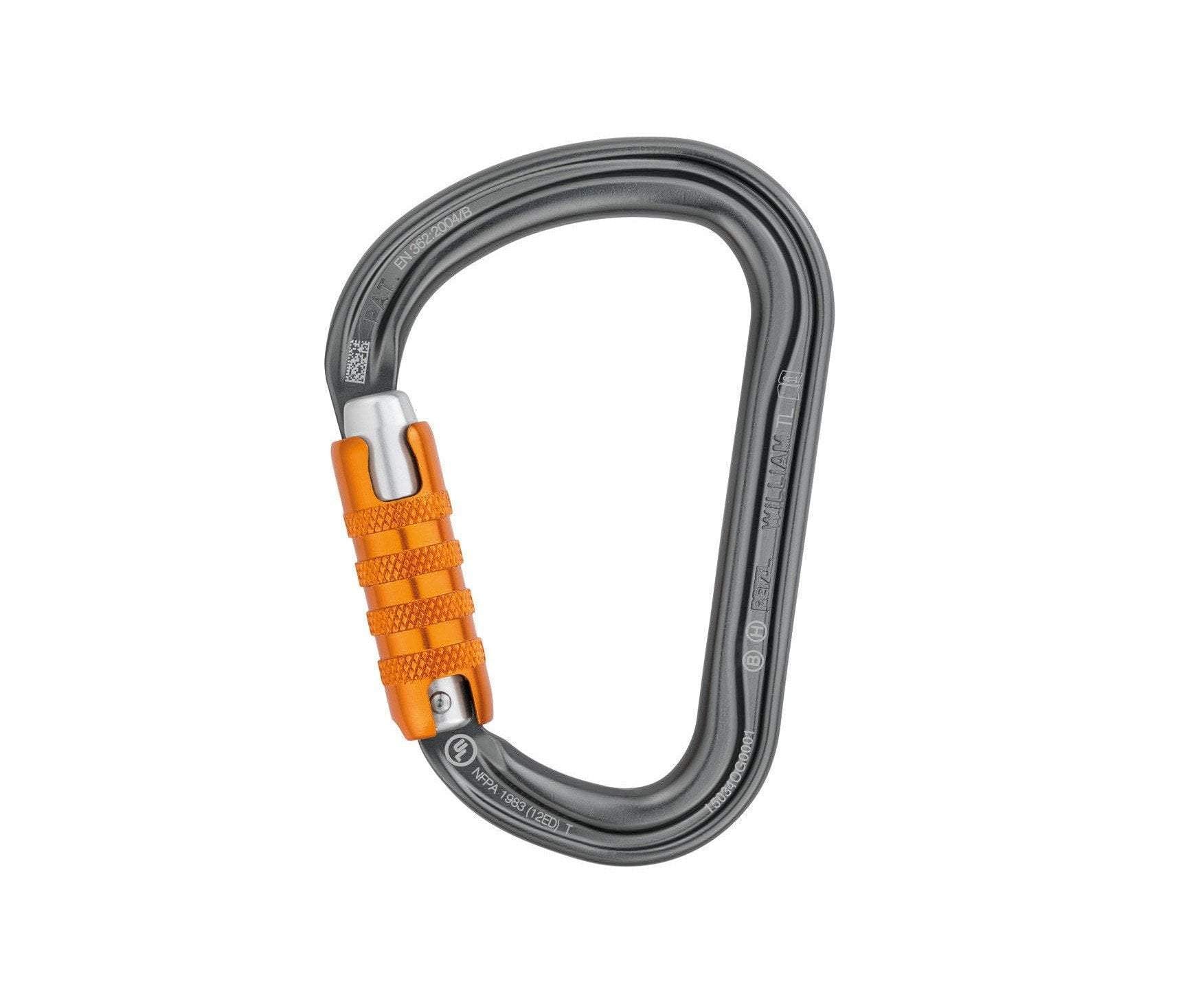

- TRIACT-LOCK: automatic locking with triple-action gate opening

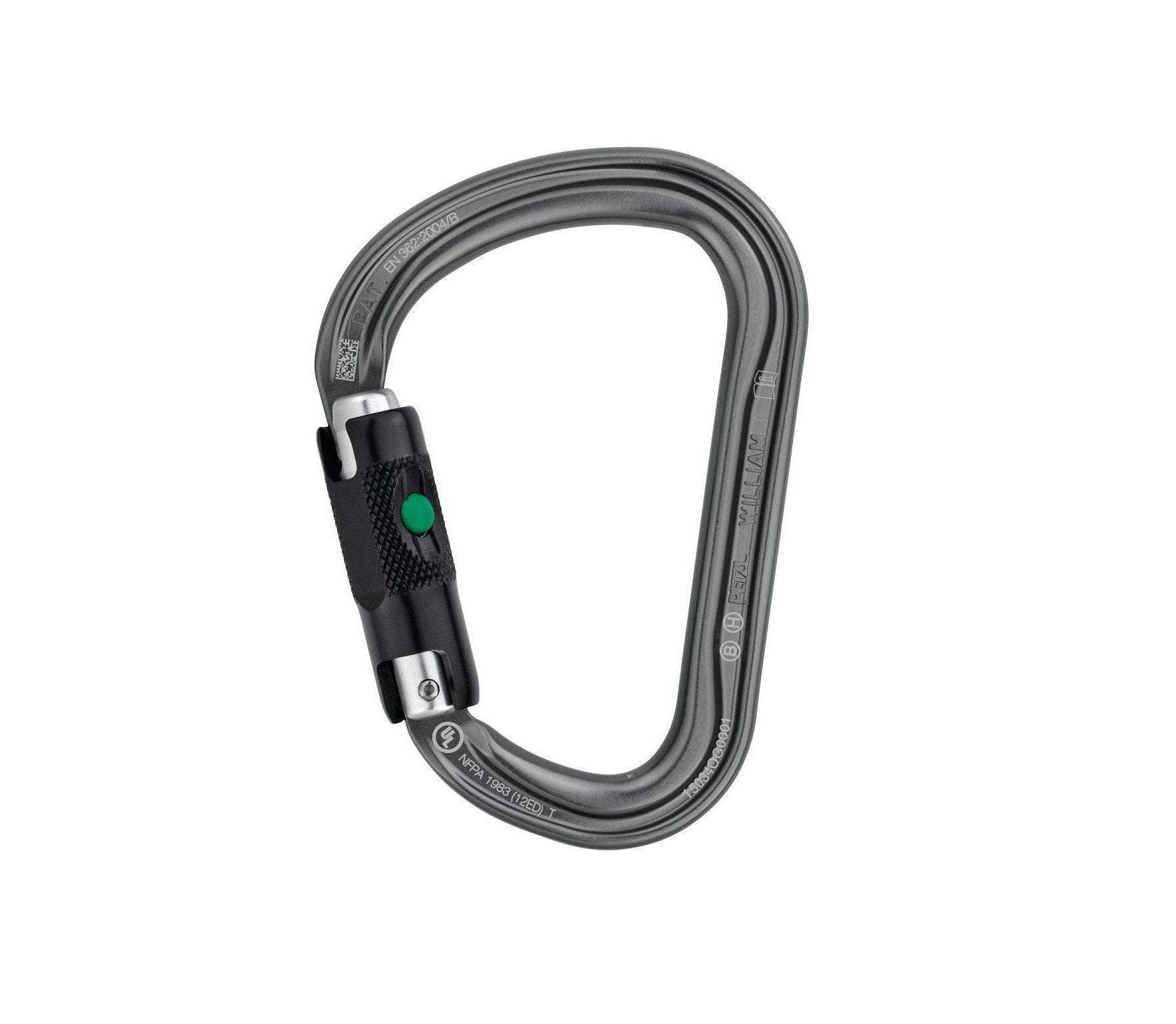

- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

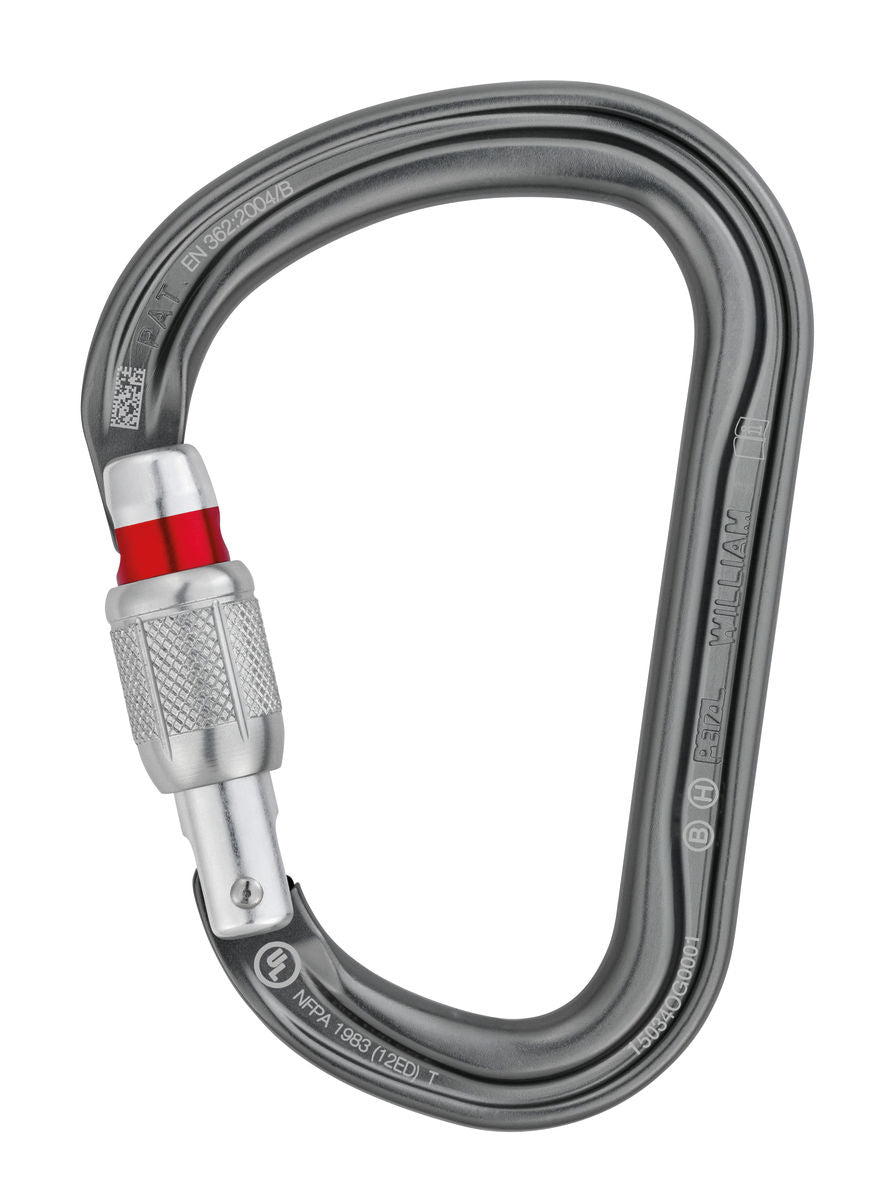

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
- Also available in black (TRIACT-LOCK and SCREW-LOCK)
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
References
| References |
M36A TL |
M36A BL |
M36A SL |
M36A TLN |
M36A SLN |
| Weight |
90 g |
90 g |
85 g |
90 g |
85 g |
| Locking system |
TRIACT-LOCK |
BALL-LOCK |
SCREW-LOCK |
TRIACT-LOCK |
SCREW-LOCK |
| Color(s) |
gray |
gray |
gray |
black |
black |
| Major axis strength |
27 kN |
27 kN |
27 kN |
27 kN |
27 kN |
| Minor axis strength |
8 kN |
8 kN |
8 kN |
8 kN |
8 kN |
| Open gate strength |
8 kN |
8 kN |
8 kN |
8 kN |
8 kN |
| Gate opening |
27 mm |
27 mm |
28 mm |
27 mm |
28 mm |
