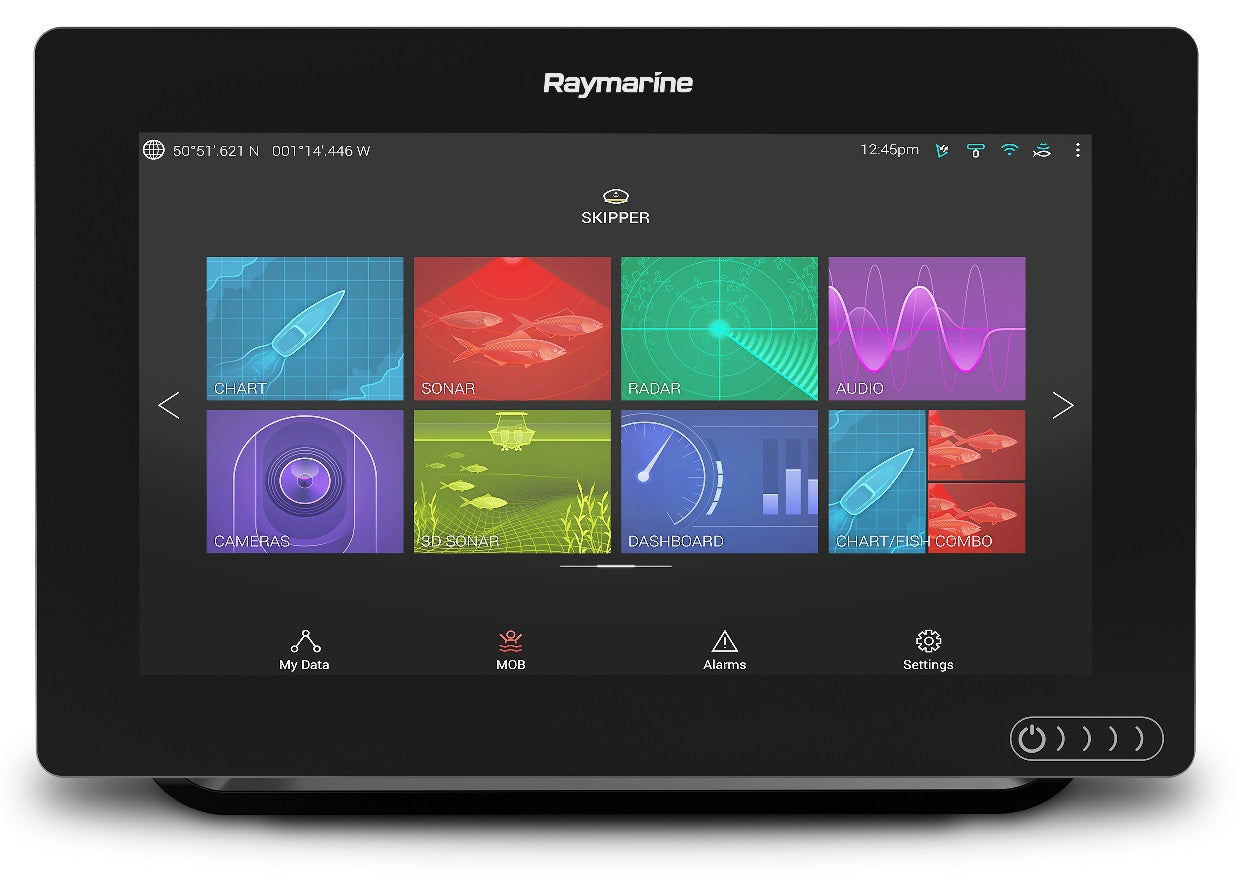

The Axiom 9 is a powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.

Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones (a future LightHouse 3 software update required for mobile app compatibility).

Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

• Fast 10 Hz 72 Channel GPS/GLONASS Receiver for Rapid Position Updates & Smooth On-Screen Tracking

• New LightHouse 3 OS is Fast, Fluid & Easy-to-Learn

• Rugged All-Glass Display Optimized for Flush or Surface Mounting.

• Support for the best charts from Navionics and LightHouse Raster

• New RealVision™ 3D Sonar

• Enhanced Awareness with FLIR Thermal & Radar

• Feature-Packed Multifunction Display

• Display Size: 9.0" Optically Bonded

• Multitouch 800 x 480 WVGA LCD Display

• Brightness: 1,200 nits

• Viewing Angle Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)

• Dimensions: 7.92" x 5.24" x 3.00"

• Weight: 3.35 lbs

• Top, Flush, Front, Bracket Mounting

• IPX6 / IPX7 Waterproof Rating

• Voltage: 12V DC (8 V to 16 VDC)

• Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310)

• Sonar Type: RealVision 3D + 600W

• Sonar Connection: RV variant = 25pin RealVision™ type connector

• Sonar Depth: RealVision™ 3D = 91m (300 feet)

• AIS: Yes - NMEA2000

• Evolution Autopilot Control

• Thermal Night Vision: IP camera input only

• Video / Camera: Up to 10 IP Cameras

• Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N America Only)*

• Audio Integration: NMEA2000 | Bluetooth* | SiriusXM Radio*

• Empirbus Digital Switching

• Remote Control: RMK-10 & RCU-38*

• Ethernet: 1 x 10/100 Mbits/ Network (RayNet)

• NMEA0183: Requires suitable adaptor to NMEA2000 network

• NMEA2000: 1 x NMEA2000 port (DeviceNet microC)

• SeaTalkNG: Requires A06045 DeviceNet female (F) adapter cable - 400mm

• USB: 1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440)

• Wi-Fi: WiFi - 802.11 b / g / n

• BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.58*

• MFD (supplied with Trunnion adaptor fitted)

• Trunnion bracket

• Trunnion knobs x 2

• Suncover — Trunnion mount

• Panel mount gasket for surface/flush mounting

• M5x58 Threaded studs x 4

• M5 Thumb nuts x 4

• Documentation pack

• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

• RealVision™ 3D RV-100 transducer and associated fittings.

• Navionics + US/Canada
