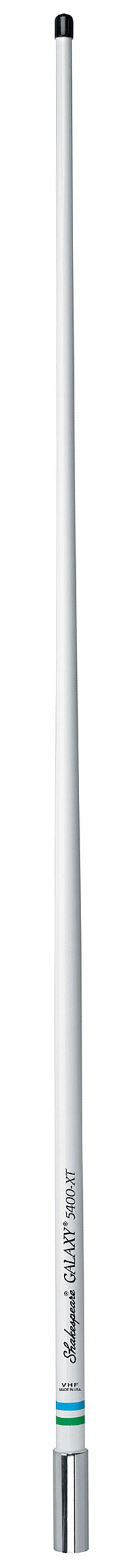

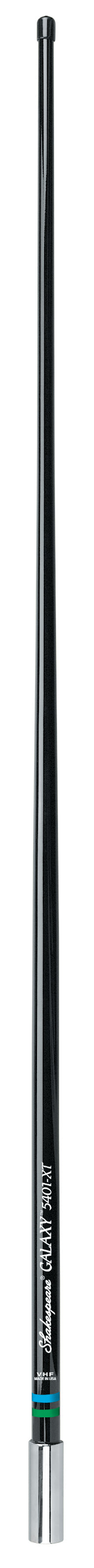

The Little Giant™ VHF antenna delivers exceptional performance for VHF communications. Exemplifying the same luxury other Galaxy® Series antennas emanate, this Little Giant™ looks sleek and provides the up most reliability that most have grown to admire.
- Maximum Power Input:
- 50 watts
- SWR Nominally:
- Less than 1.5:1 at 156.8 MHz
- Bandwidth:
- 5 MHz within 2.0:1 VSWR
- Frequency: VHF Marine Band
- Antenna Gain:
- 3dB
- Ferrule:
- Stainless Steel with a standard 1"-14 Thread
- Coax Supplied:
- 20' RG-8/X low-loss cable
- Connector Supplied:
- PL-259 (Not installed)
- Polarity:
- Vertical
- Impedance:
- 50 Ohms
- No DC Ground. The antenna will read open on continuity test
- Suggested mount:
- 4187 Ratchet Mount or 5187 Ratchet Mount (Not Included)
- Brass and copper elements to maximize range and efficiency
- Galaxy White finish
- One Section
