Description

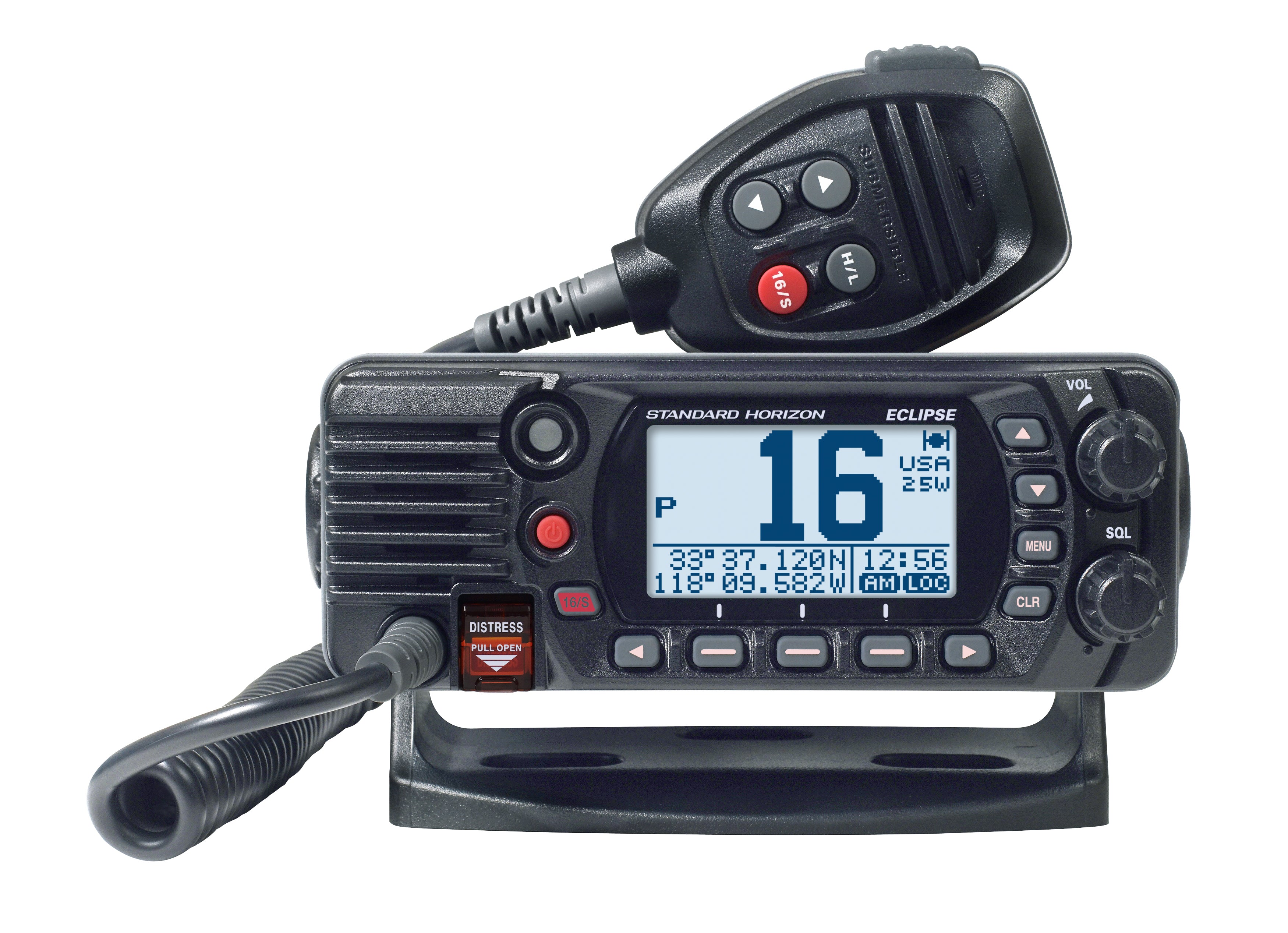

Eclipse Series GX1410 25W Fixed Mount VHF
• Affordable Ultra Compact Class D Fixed Mount VHF Radio
• Meets the latest Standards for ITU-R M493-16 Class D DSC
• Replaces older Eclipse+ and Eclipse DSC Models
• Radio controls on the Microphone
• E2O Easy to Operate Icon/Menu System
• Oversized Full dot matrix display (31 mm x 55 mm)
• Built in Separate Receiver for CH70 (Receiving DSC Calls)
• DSC test call and Auto DSC channel change selection
• GPS position and Time Shown on a Full-dot Matrix Display when Connected to a GPS Receiver
• NMEA0183 In and Output Connections to a Compatible GPS Chart Plotter
• Programmable soft keys
• Automatically poll the GPS position of up to 6 ships using DSC
• Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
• All USA/International and Canadian Marine Channels
• Preset key used to recall up to 10 favorite channels
• NOAA weather channel selection with Weather Alert
• Programmable Scan, Priority Scan, and Dual Watch

Features

E2O Easy to Operate Menu System
Keeping the everyday boat operator in mind, the Easy to Operate menu system is more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.

ITU-R M493-16 Class D Digital Selective Calling
The GX1410 Eclipse Series is an ITU-R M493-16 Class D VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications. The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.

High Resolution Dot Matrix Display
he High resolution dot matrix display makes navigating the radios many features smooth and easy. The adjustable Ultra bright backlight makes daytime and nighttime viewing a breeze.
