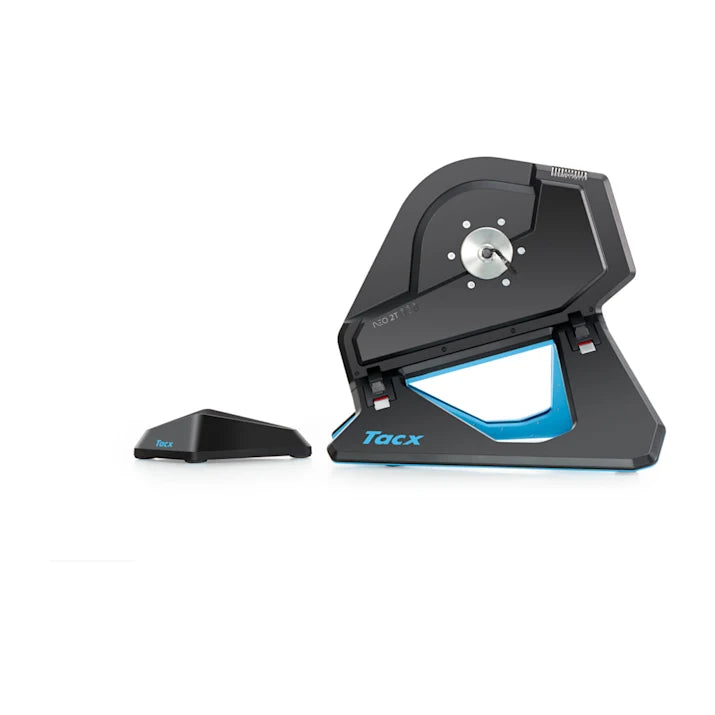

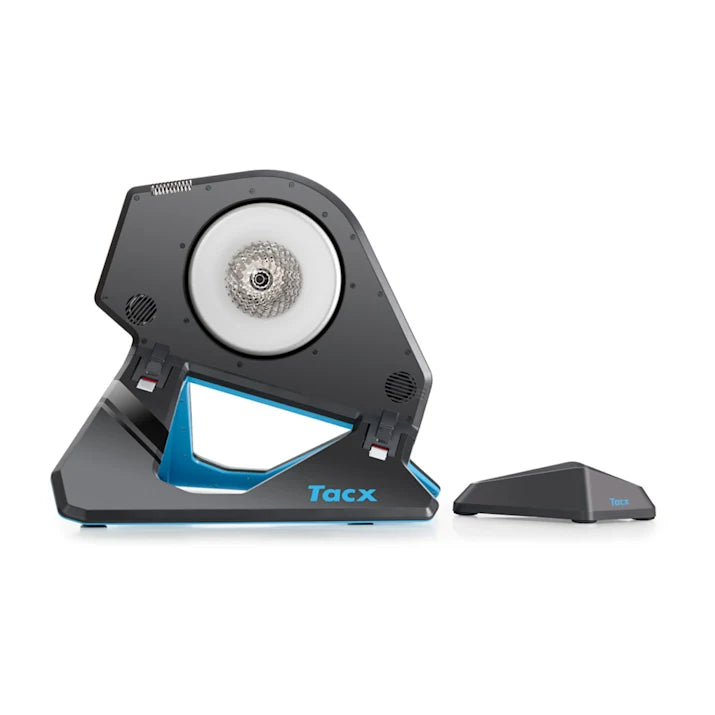

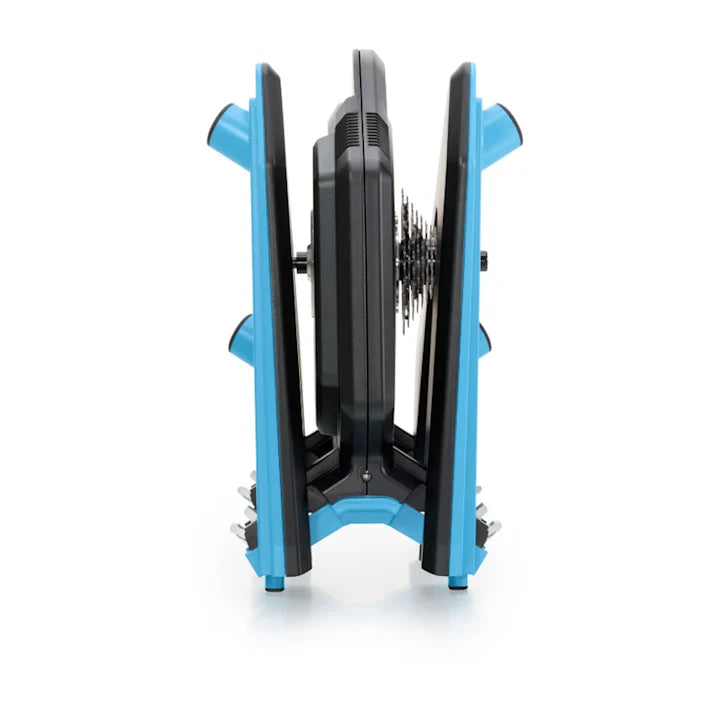

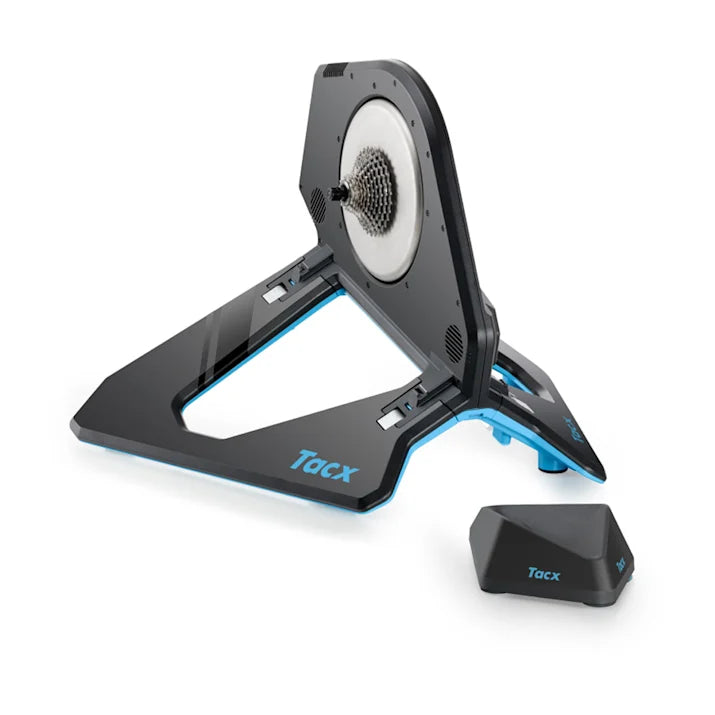

With an improved design and revamped components, the NEO 2T Smart trainer provides a more immersive experience, measures total power and left/right balance and more.
Reduced vibrations mean a quieter ride. So go ahead, really let loose.
You care a lot. So we measure a lot. Like power and cadence to within 1% accuracy.
Are you balanced? See your left/right leg power balance on your app or Edge® bike computer.
It’s the closest thing to riding outdoors you’ll ever find indoors.
You don’t have to miss the feel of the road. It’s right here.
Race mode gives you lightning-fast response in virtual races.
General |
|
| PHYSICAL DIMENSIONS | 22.6" x 29.5" (575 x 750 mm) |
|---|---|
| WEIGHT |
47.4 lbs (21.5 kg) |
| HEIGHT | 21.7" (55 mm) |
Connectivity |
|
| WIRELESS COMMUNICATION | ANT+ connectivity, BLUETOOTH wireless technology |
|---|---|
| CONTROL BY |
Smartphone, tablet, ANT+ bike computers, stand alone, computer connection via ANT+ antenna |
| READ OUT ON |
Smartphone, tablet, bike computer, computer with ANT+ antenna |
| CONNECTION INDICATOR (ANT+/BLUETOOTH) | 2 LEDs |
| POWER INDICATOR | Multicolor LED, spot on floor |
Indoor Training Features |
|
| ELECTRICAL REQUIREMENT | 110-240 Volts |
|---|---|
| SUITABLE AXLES |
Width of rear fork: Race 130 mm, MTB 135 mm, 142 mm and 148 mm. Adapter for 135 x 10 mm available |
| GEAR RATIO |
Chainring set-up: up to 3 sprockets, teeth per sprocket, adjustable between 22 and 53; Rear cassette: up to 12 sprockets, teeth per sprocket adjustable between 11 and 40 |
| Q-FACTOR | 147 mm |
| MAX POWER | 2200 Watt |
| MAX INCLINE | 25% |
| SIMULATION OF DESCENT | |
| MAX TORQUE | 88 Nm |
| MAX BRAKE FORCE | 260 N |
| FLYWHEEL | Virtual |
| MASS INERTIA | Variable to 275.6 lbs (125 kg) |
| CALIBRATION | No calibration needed |
| OUTPUT | Speed, cadence, power |
| ACCURACY | <1% |
